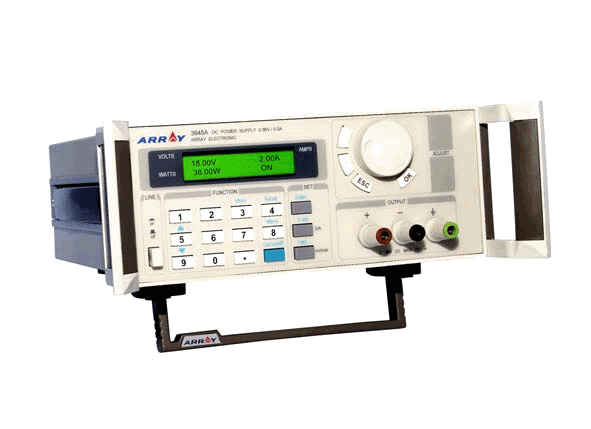

Prog. Laborstromversorgung 3645

ARRAY ELECTRONIC

weitere Produkte von

ARRAY ELECTRONIC



- DC Lasten



- DMMs und Zubehör







Hochpräzise Laborstromversorgung 100 W Typ 36xx



- Trennung durch potenzialfreien Ausgang

- Ausgang zu- und abschaltbar (ON/OFF - Funktion)

- U und I - Regelung

- komfortable Bedienung

- LCD-Display

- Schnittstelle







Produktbroschüre



Introduction:
Array 3600 series Power Supply is a high performance single-output programmable DC power source. It is easy to control from the front panel, or via the serial port by the computer. Up to 10 settings can be stored for later recall.
The low noise, excellent regulation, and built-in voltmeter/ammeter make this reliable power supply well suited for the exact needs of design, education, test and manufacture.

Features:

LCD display with backlight

Number keypad and rotary knob

Constant voltage & constant current mode

Low output ripple & noise

Output on/off

Multifunction menu

Maximum output voltage/power limitation

High program resolution

Over temperature/over current/over power protection

10 parameters storage

Can be controlled by PC

Can be connected in series and parallel to expand output voltage and current
Specifications:

Model

3644A

3645A

3646A

Number of outputs

1

1

1

DC outputs

Voltage

0 - 18V

0 - 36V

0 - 72V

Current

5A

3A

1,5A

Power(max)

90W

108W

108W

Line regulation

Voltage

0 - 3,999V: 0.01%+3mV

0 - 3,999V: 0.01%+3mV

0 - 3,999V: 0.01%+3mV

4 -18V/0,02%+10mV

4 -36V/0,02%+10mV

4 - 72V/0,02%+10mV

Current

0,02%+8mA

0,02%+8mA

0,02%+8mA

Load regulation

Voltage

0,02%+20mV

0,02%+10mV

0,02%+10mV

Current

0,02%+15mA

0,02%+10mA

0,02%+8mA

Ripple and noise
Voltage

<1mV rms

<1mV rms

<1mV rms

Current

<5mA rms

<4mA rms

<3mA rms

Programming accuracy at 25°C+/-5°C

Voltage

0,1%+20mV

0,1%+20mV

0,1%+20mV

Current

0,2%+20mA

0,2%+20mA

0,2%+20mA

Readback accuracy at 25°C+/-5°C

Voltage

0,2%+20mV

0 -19,99V / 0,2%+20mV

0 -19,99V / 0,2%+20mV

20 - 36V / 0,2%+100mV

20 - 72V / 0,2%+100mV

Current

0,2%+20mA

0,2%+20mA

0,2%+20mA

Program resolution

Voltage

0 - 3,999V / 1mV

0 - 3,999V / 1mV

0 - 3,999V / 1mV

4 - 18V / 10mV

4 - 36V / 10mV

4 - 72V / 10mV

Current

1mA

1mA

1mA
Readback resolution

Voltage

10mV

0 - 19.99V / 10mV

0 - 19.99V / 10mV

20 - 36V / 100mV

20 - 72V / 100mV

Current

10mA

10mA

10mA

Protection

Over voltage / Over current / Over power

Interface

RS232 / RS485 / USB *

AC Input

110V / 220V AC +/-15%, 47 - 63Hz

Operating environment

0 - 50°C, 80% RH  **

Weight

6.00kg

Dimensions

212,6mm W x 88,1mm H x 250mm D

Software

PowerMS Power Management System software, ActiveX and DLL tools

Support VB, VC++, DELPHI, LABVIEW

Standard accessories

User’s manual, AC cable, handlebars, software CD

Optional accessories

RS232 adaptor, RS485 adaptor, USB adaptor, Mounting rack

  * Optional adapter required
  ** 0 to35°C for full rated output. At higher temperatures, the output current is derated 3% per°C
